Multifunctional Automatic Carton / Box Making Machine

Name: Multifunctional Automatic Carton Box Making Machine
Brand: AMC MACHINERY
Price: 1 USD

Brand Name : AMC MACHINERY

Model Number : AB2500 FAST

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiate

Payment Terms : T/T

Supply Ability : 5 sets per month

Delivery Time : 40 working days

Packaging Details : Corrugated box and plastic film

Voltage : 220V or 380V or 415V

Color : Customized

Corrugated board type : Sheets (single, double, triple wall)

Corrugated board thickness : 1.5-8mm

Max. Board size : 2500mm (W)xUnlimited Length

Min. Board size : L650*W200mm

Speed : 3000pcs/hr

Contact Now

Automatic Box Maker
The Perfect Solution for Small-Batch, Multi-Style Carton Production

Model: AB2500 FAST

A revolutionary on-demand one-pass box making machine with a patented overall design. Combines the speed of a slotter with the functionality of a digital cutter.

Features:

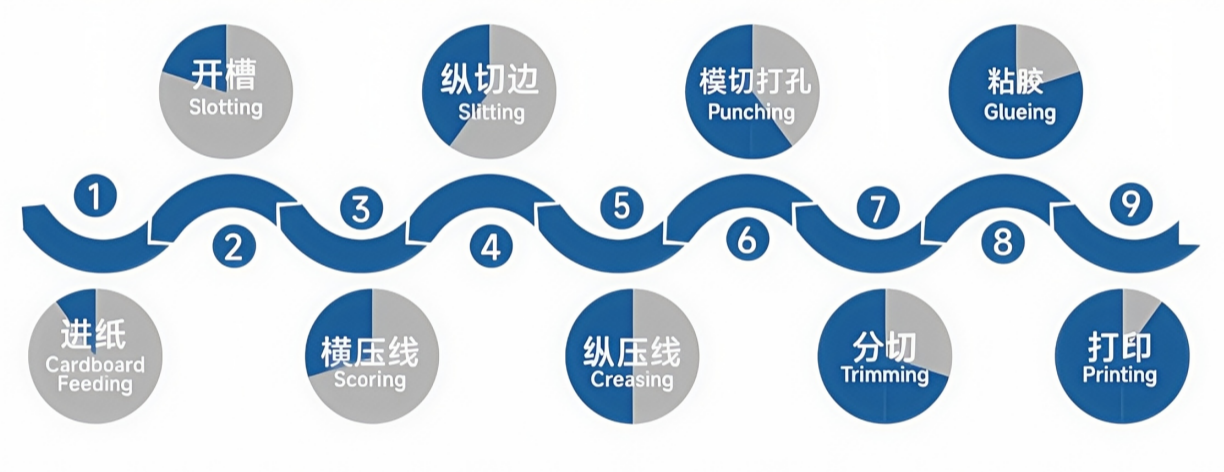

✔ Enable slotting, creasing, scoring, slitting, trimming, and hole punching in one pass.

✔ Effortlessly handles diagonal cuts and U-shaped slots.

✔ Operates at one meter per second without interruption, perfectly matching the output of single-pass digital printers.

Specification:

Model	AB2500 FAST
Speed	3000pcs/hr
Switchover time	10s
Board type	Corrugated sheet
Board thickness	1.5-8mm
Max. Board size	W2500mm
Max. Board size	Unlimited length
Min. Board size	L650*W200mm
Max. Box size	W1000H1500mmUnlimited length
Min. Box size	L240W240H65mm
Total power	380V
Total power	80KW
Wight	7000kgs
Dimension (LxWxH)	L2700mm
	W3759mm
	H2200mm

Functions:
Multifunctional Automatic Carton / Box Making Machine

Model	AB2500 FAST
Pre-defined Box Types	√
Automatic Feeding	√
Scoring	√
Slotting	√
Creasing	√
Slitting	√
Trimming	√
Hole Puncher	√
Code Scanning	Optional
Automatic stacking	Optional
Printing	Optional
Box folding	×
labeling	×
